LED 90mm combination headlight - SVL-01001X Series

£0.00

  • Combination low beam / high beam headlight

  • Left- and right-hand traffic variants

  • Low beam: 1 × 2 chip LEDs

3 x 1 chip LEDs (1620 lumens)

  • High beam: 7 x 1 chip LEDs (2330 lumens)

  • Certified to ECE Reg 10

  • Certified to ECE Reg 112 (SVL-010016) left-hand traffic variant (LHT)

  • DOT compliant (SVL-010010) right-hand traffic variant (RHT)

  • Multi-voltage: 10-30Vdc

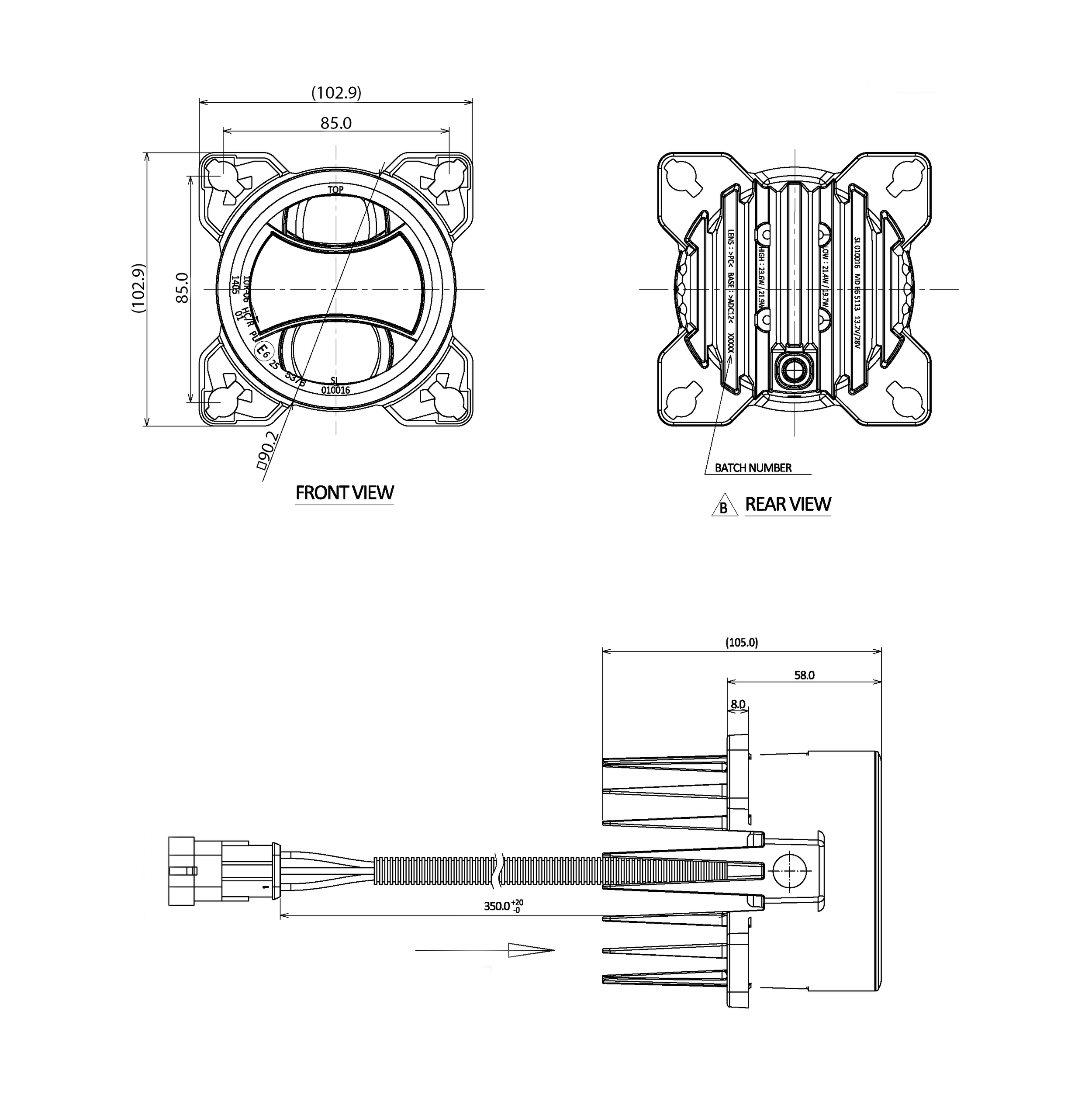

  • 4 point mounting with 85mm centres

    (Adjustment screw, bushing & O-ring provided)

  • IP67 rated

  • Polycarbonate lens

  • Die-cast aluminium housing

  • More info >

Add To Cart

  • Combination low beam / high beam headlight

  • Left- and right-hand traffic variants

  • Low beam: 1 × 2 chip LEDs

3 x 1 chip LEDs (1620 lumens)

  • High beam: 7 x 1 chip LEDs (2330 lumens)

  • Certified to ECE Reg 10

  • Certified to ECE Reg 112 (SVL-010016) left-hand traffic variant (LHT)

  • DOT compliant (SVL-010010) right-hand traffic variant (RHT)

  • Multi-voltage: 10-30Vdc

  • 4 point mounting with 85mm centres

    (Adjustment screw, bushing & O-ring provided)

  • IP67 rated

  • Polycarbonate lens

  • Die-cast aluminium housing

  • More info >

  • Combination low beam / high beam headlight

  • Left- and right-hand traffic variants

  • Low beam: 1 × 2 chip LEDs

3 x 1 chip LEDs (1620 lumens)

  • High beam: 7 x 1 chip LEDs (2330 lumens)

  • Certified to ECE Reg 10

  • Certified to ECE Reg 112 (SVL-010016) left-hand traffic variant (LHT)

  • DOT compliant (SVL-010010) right-hand traffic variant (RHT)

  • Multi-voltage: 10-30Vdc

  • 4 point mounting with 85mm centres

    (Adjustment screw, bushing & O-ring provided)

  • IP67 rated

  • Polycarbonate lens

  • Die-cast aluminium housing

  • More info >

Additional Information



Part Numbers

  • SVL-010010 90mm LED combo headlight, high/ low beam, DOT compliant, right-hand traffic (RHT)

  • SVL-010016 90mm LED combo headlight, high/ low beam, ECE certified, left-hand traffic (LHT)

For more information on this product please contact us
